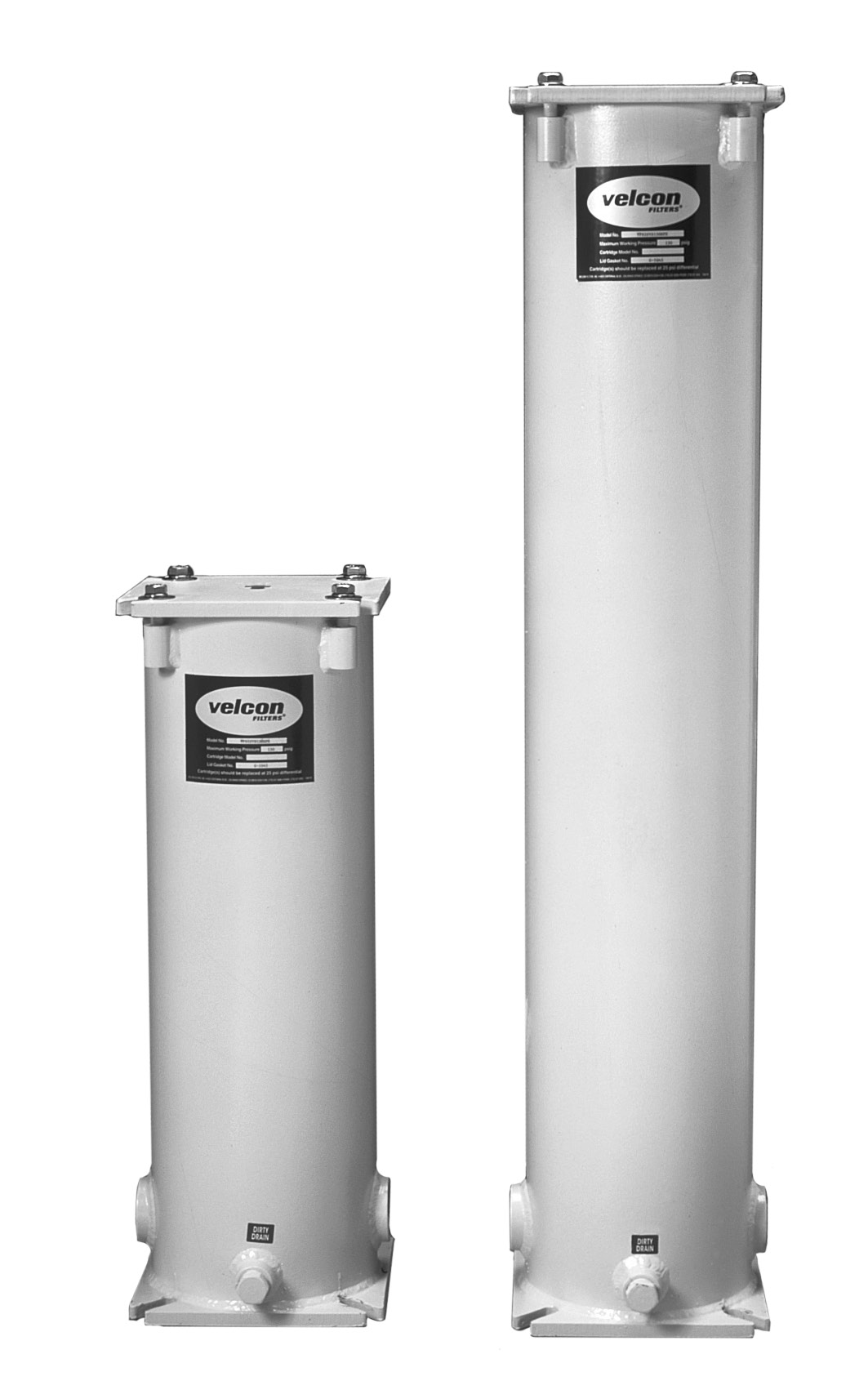

Velcon Single and Double Filter Housings

velcon filter housingSingle and Double Element Housings 1 1/2” Inlet/Outlet

Standard Features

  • Carbon steel construction
  • 150 psi design pressure
  • 195 psi hydro-test pressure
  • Polyurethane almond powder coated interior & exterior
  • 1-1/2” NPT female inlet/outlet
  • 3/4” NPT drain couplings (qty 2)


Application Information

50 or 100 gpm maximum flow rates for fuels. For oils, determine viscosity, then rate based on cartridge flow capacities.

  • Hydraulic Oil
  • Gasoline
  • Insulating Oil
  • Transformer Oil
  • Diesel Fuel
  • Coolant
  • Lube Oil
  • Cutting Oil
  • Kerosene
  • Synthetic Oil
  • Gear Oil
  • Quench Oil

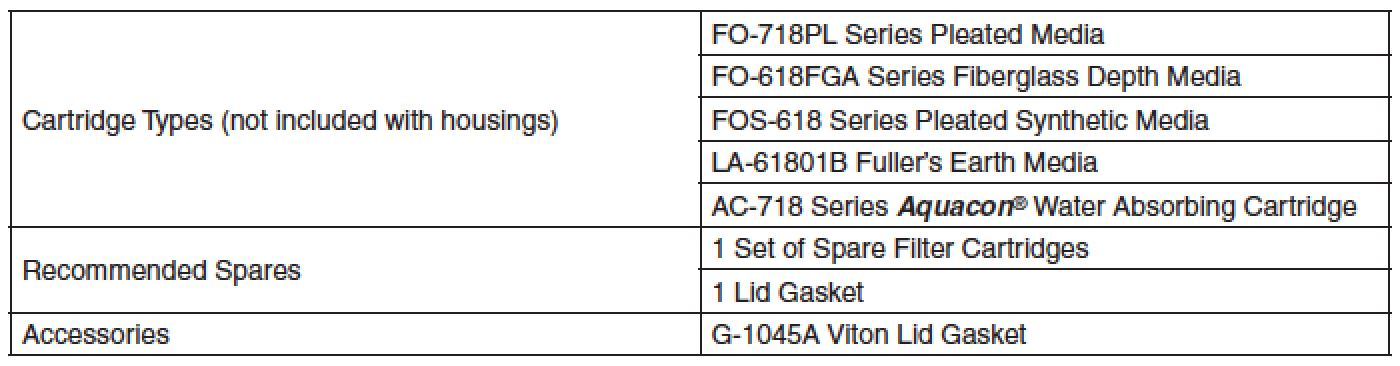

Ordering Information

Velcon housing filter ordering

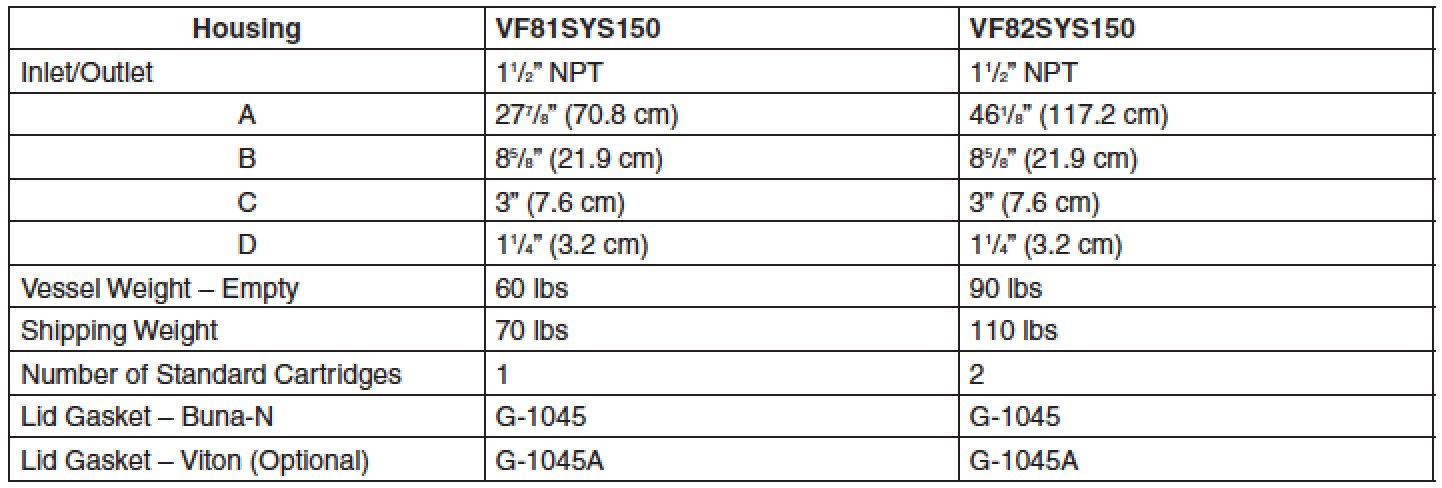

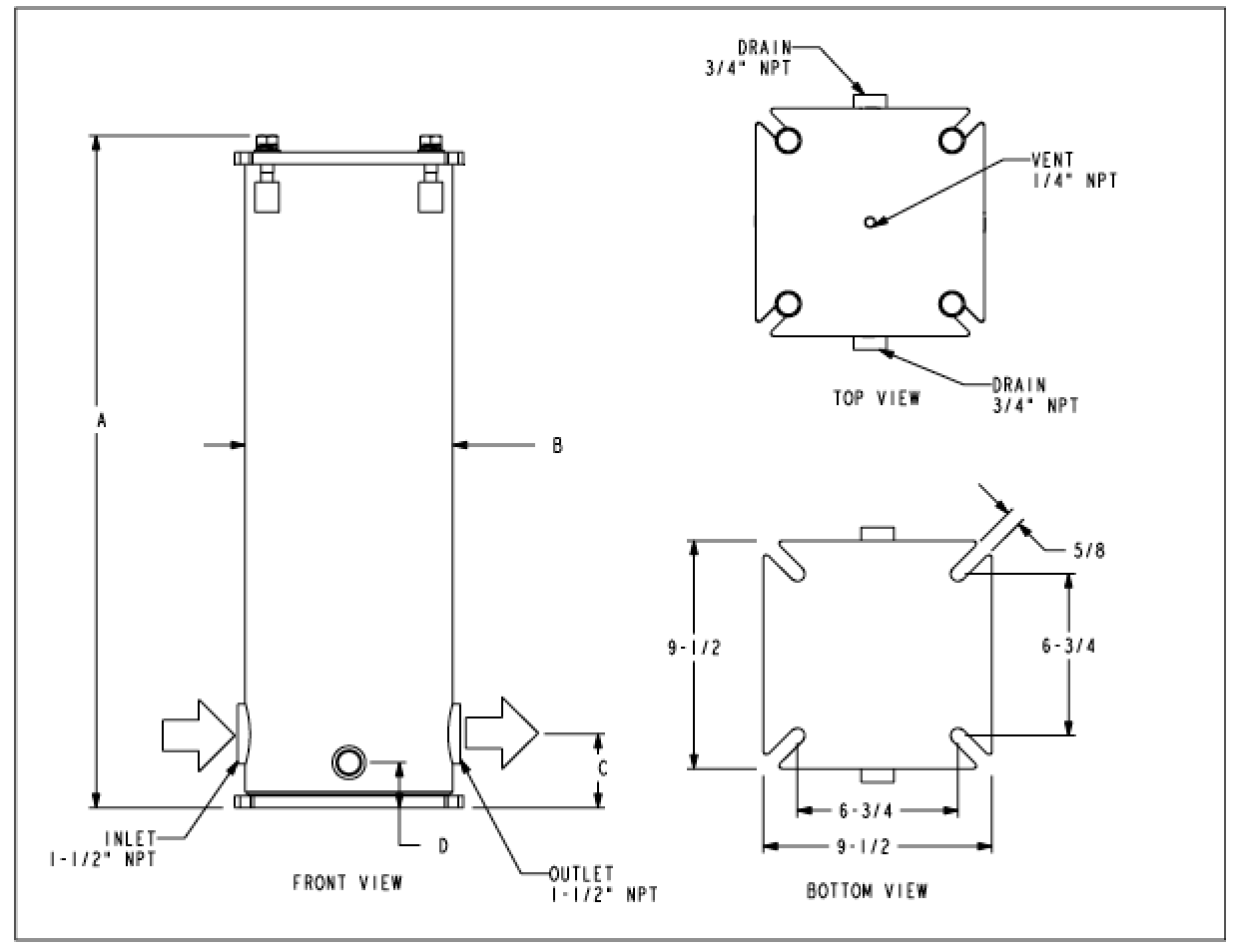

Velcon Filter Housing Specs

velcon filter housing specs
